Features
Add powerful bass to your portable PA system with low-end range down to 40 Hz

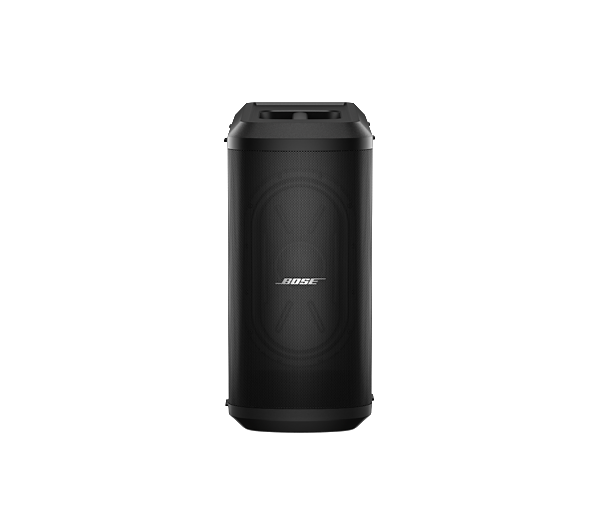

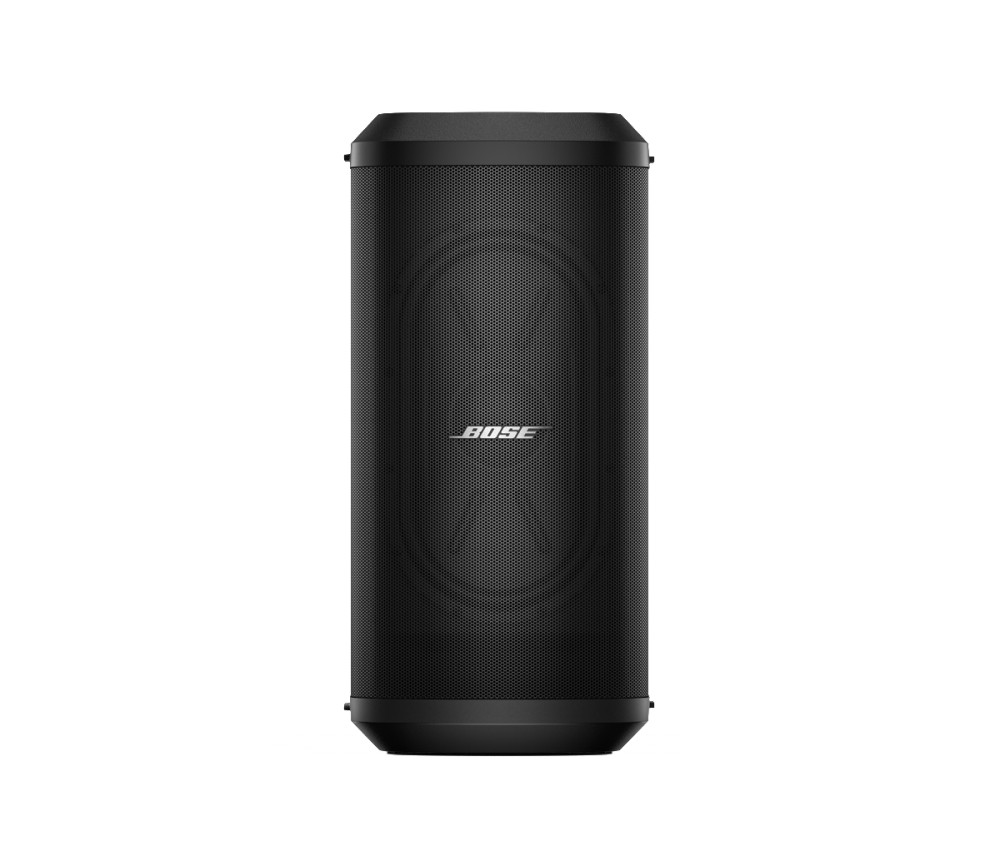

Go from vehicle to venue easily with a slim design featuring a unique 7” × 13” high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

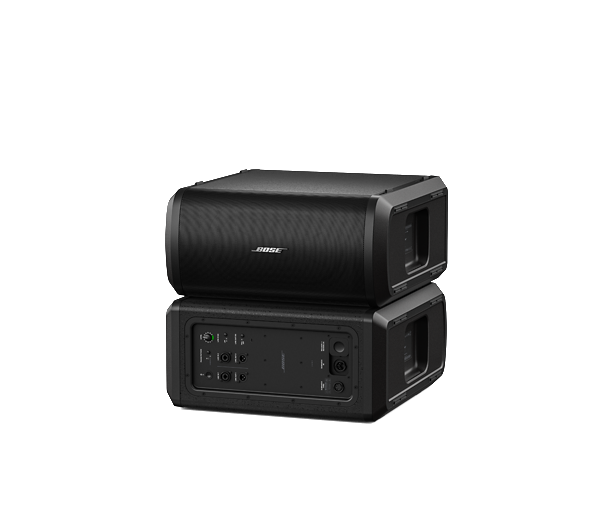

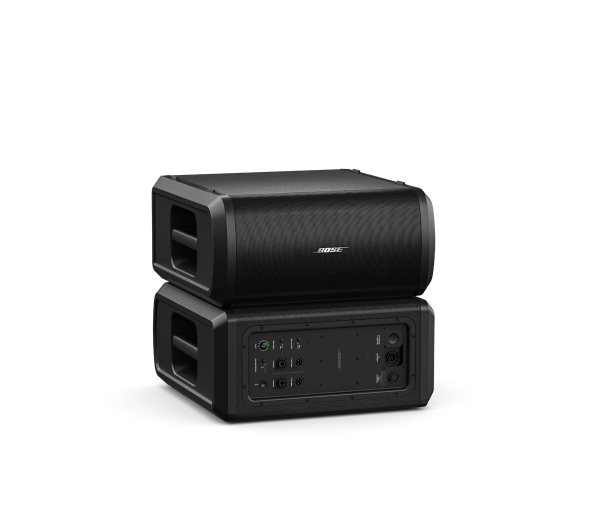

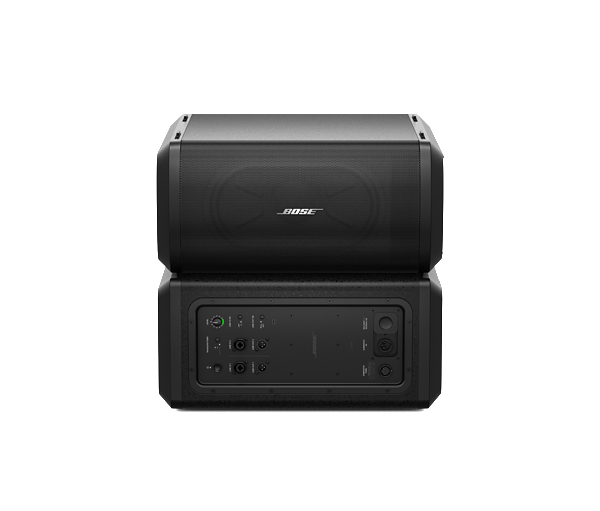

Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

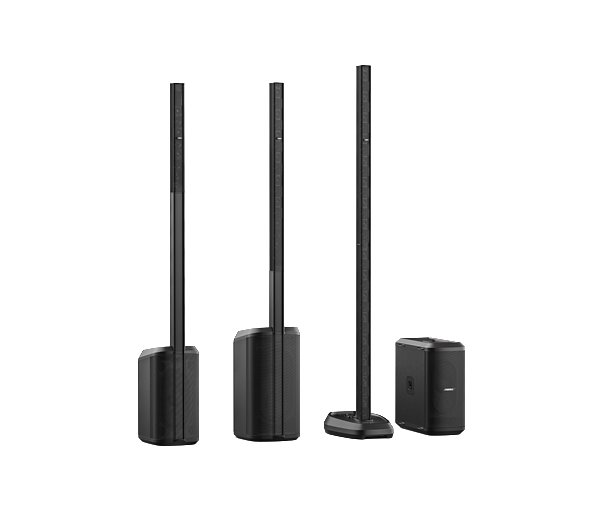

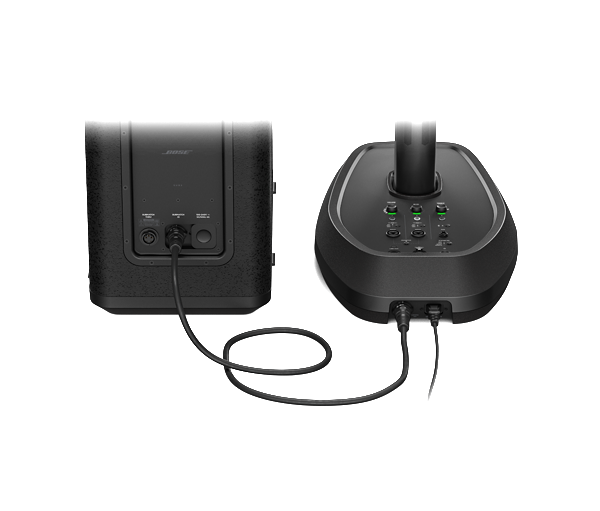

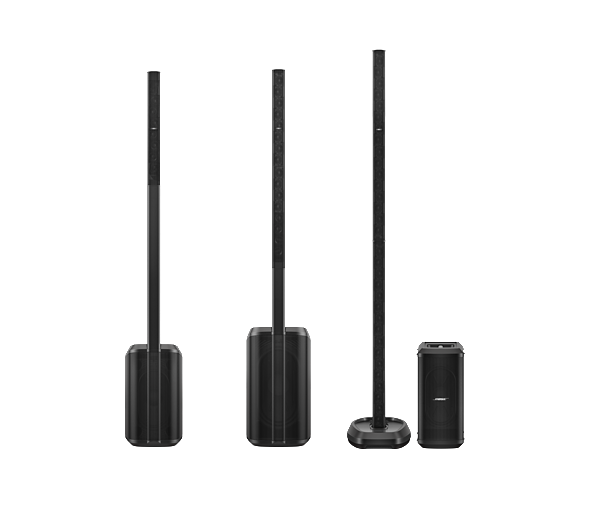

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more
-------------------------------------------------------- SPECS -----------------------------------------------
System Performance
Model Name: Sub1
System Type: Self-powered bass module
Frequency Response (–3 dB): 1 40 Hz to 180 Hz
Frequency Range (–10 dB): 32 Hz to 250 Hz
Nominal Vertical Coverage Pattern: 0°
Nominal Horizontal Coverage Pattern: Omnidirectional (with –10 dB rear rejection in Cardioid mode)
Calculated Maximum SPL @ 1 m, continuous 2: 118.6 dB
Calculated Maximum SPL @ 1 m, peak 2; 124.6 dB
Crossover: 200 Hz
Transducers
Low Frequency; 1 × RaceTrack low-frequency driver 7" × 13"
Low Frequency Voice Coil Size: 2"
Driver Protection: Dynamic limiting
Amplification
Type: Class D
Low Frequency Amplifier Channel: 480 W
Cooling: Convection cooling
Onboard Mixer
Channels: Two

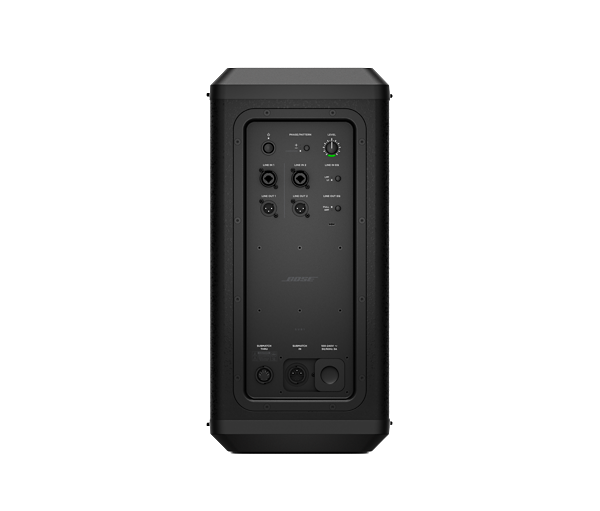

Channel 1 & 2 Input: Audio Type: Combination XLR or 1/4" TRS connector (mic/instrument/line)
Channel 1 & 2 Input: Impedance: 100 KΩ
Channel 1 & 2 Input: Channel Gain +10 dB to +45 dB; from input to driver, controlled by volume control
Channel 1 & 2 Input: Max Input Signal +24 dBu
Channel 1 & 2 Output: Audio Type: XLR connector, line-level, full-frequency bandwidth
SubMatch Input: Audio Type: Bose proprietary multi-pin cable
SubMatch Thruput: Audio Type: Bose proprietary multi-pin cable
LED Indicators: Standby, Phase/Pattern selection, Input EQ selection, Output EQ selection, Signal/Clip Indicator
AC Power
AC Power Input: 100–240 VAC (±20%, 50/60 Hz)
Input: Electrical Type: IEC, SubMatch
Initial turn on inrush current: 14.9 A at 120 V; 29.3 A at 230 V
Inrush current after AC mains interruption of 5 s: 5.8 A at 120 V; 32.0 A at 230 V
Technical Specifications
Enclosure
Color: Black
Enclosures Material: High-impact polypropylene, birch plywood
Grille Material: Powder-coated perforated steel
Product Dimensions: (H × W × D) 533 × 260 × 529 mm (21.0 × 10.2 × 20.8 in)
Shipping Dimensions: (H × W × D) 620 × 620 × 330 mm (24.41 × 24.41 × 12.99 in)
Net Weight 3 15.5 kg (34.1 lbs)
Shipping Weight 18.0 kg (39.6 lbs)
Warranty Period: 2 years
Included Accessories: IEC power cord, slip cover
Optional Accessories: Sub1 Roller Bag, Adjustable Speaker Pole, SubMatch Cable
Product Part Numbers
840918-1100 SUB1 POWERED BASS MODULE,120V,US
840918-2100 SUB1 POWERED BASS MODULE,230V,EU
840918-3100 SUB1 POWERED BASS MODULE,100V,JP
840918-4100 SUB1 POWERED BASS MODULE,230V,UK
840918-5100 SUB1 POWERED BASS MODULE,230V,AU
840918-5130 SUB1 POWERED BASS MODULE,230V,INDIA
856985-0110 PREMIUM ROLLER BAG,SUB1,BLACK
857172-0110 SUBMATCH CABLE,BLACK
857000-0110 SPEAKER STAND,SUB POLE,BLACK
