SPECIFICATIONS

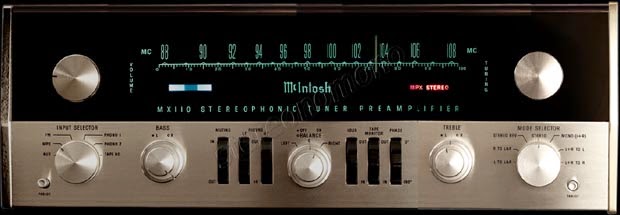

The McIntosh MX 110 combines in one unit an extremely low-distortion preamplifier with a highly sensitive FM multiplex stereo tuner.
Every desirable feature of a tuner and a preamplifier is included in this design.
Interstation noise suppression, tuning indicator, FM multiplex indicator, individual channel bass controls, individual channel treble controls and electronic phase switch have been engineered into the MX 110.
Specifications
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.2%
Input sensitivity: 3mV (MM), 300mV (line)
Signal to noise ratio: 80dB (line)
Output: 300mV (line), 3V (Pre out)
Dimensions: 16 x 5-7/16 x 13 inches
Weight: 12.5KG
Finish: black and gold anodized front
YEAR MADE: 1962-1969
https://www.thetubestore.com/lib/thetubestore/schematics/McIntosh/McIntosh-MX110-Z-Series-Owner-Manual.pdf
