A stereo power amplifier that achieves high sound quality while maintaining high reliability through various guard systems.
The power guard function constantly compares the input and output signal waveforms, and when a difference of 0.3% or more is detected, the gain is automatically lowered to prevent abnormal operation, and the output distortion is 14 dB safe until it exceeds 2%. Overdrive is guaranteed.
In addition, reliability is enhanced by circuits such as a sentry monitor, which is a protection circuit for the output stage, and temperature protection, which prevents overheating and achieves a long life.
The driver stage is connected in cascade to increase the speed.

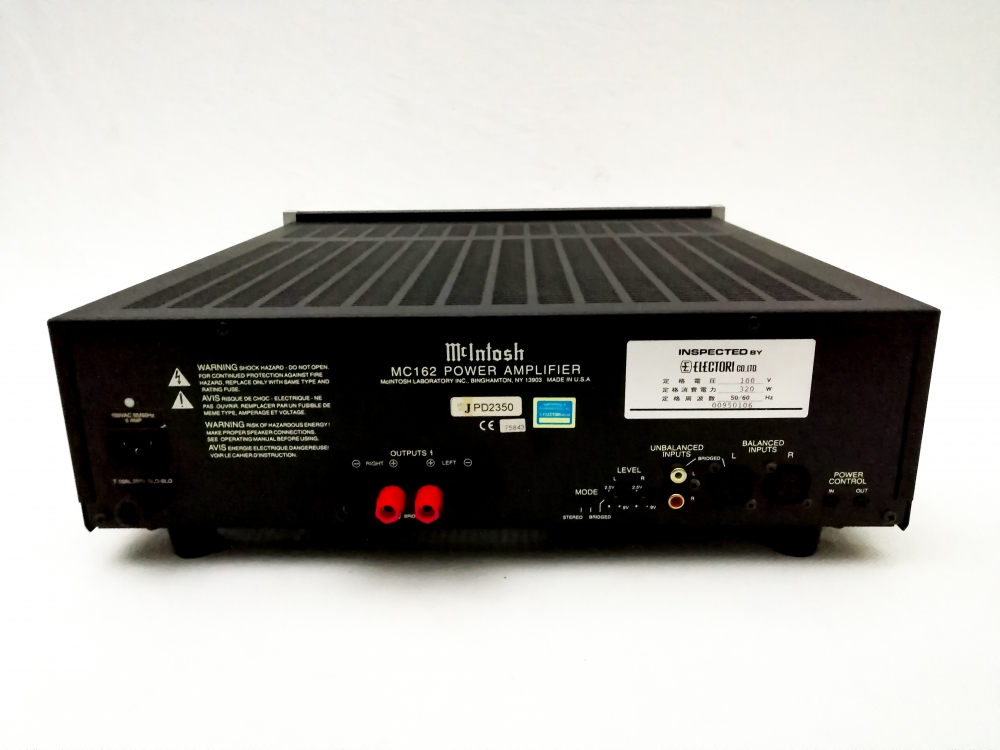

The input level control is carried in the rear panel, and the fine adjustment of each channel is possible.
With MC162, it is possible to obtain an output of 500W by bridging.
The power meter can be turned on / off.
| Model | Stereo power amplifier | ||||
| Rated output |
|
||||
| Output load impedance | 4Ω, 8Ω | ||||
| Rated power band | 20Hz-20kHz | ||||
| Dynamic headroom | 1.6dB | ||||
| Frequency characteristic | 20Hz-20kHz +0 -0.25dB 10Hz-100kHz +0 -3dB |
||||
| Total harmonic distortion | 0.005% or less (250mW ~ rated output, 20Hz ~ 20kHz, when both channels are driven) | ||||
| Intermodulation distortion | Maximum 0.005% (20Hz to 20kHz, both channels driven, per channel, when the instantaneous peak is less than twice the rated output) | ||||
| SN ratio | 110dB (when below rated output) | ||||
| Input sensitivity | 0.9V (2.5V, level control center click position) | ||||
| Input impedance | 10kΩ (unbalanced) 22kΩ (balanced) |
||||
| Damping factor | 100 or less (4Ω) 200 or less (8Ω) |
||||
| External dimensions | Width 445 x Height 137 x Depth 445 mm | ||||
| weight | 19.1kg |
